Scale for forklift trucks

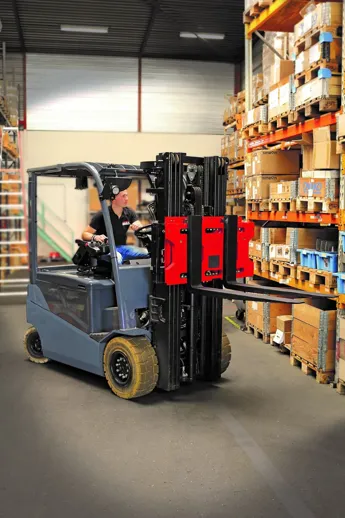

Intelligent Carriage Plate
Efficient
With the iCP, lifting, weighing, counting, accumulating, and transporting are accomplished as a single efficient operation. This streamlines workflow by eliminating the time-consuming task of taking shipments to remote platform scales.
Flexible
Compatible with most forklift truck carriages, the iCP requires no modification as it does not connect to the truck’s hydraulic system. The multiple flexures have no moving parts and absorb the shock caused when transferring the weight to the load cells.
Accurate
The iCP’s unique single-load cell design provides superior load-sample linearity and maintains 0.1% accuracy from heel-to-toe and fork-to-fork. Also, the iCP is NTEP certified to ensure your legal-for-trade requirements are met.
Safety
Manufactured with two rugged grade-8 steel bolts to prevent damage to the load cells and secure the scale base for service or if the flexures fail due to unintentional abuse. The load cell rating is set to withstand an overload of 300% without damaging the cell.
Generate Profit for your Warehouse
The iCP Helps Generate Profit by Re-Weighing
Watch how the iCP can turn your cost centers into profit centers by re-weighing.
- Weighing capacity
- NTEP (Legal for Trade): 5,000 lbs. , 10,000 lbs. , 12,000 lbs. Non NTEP: 6,000 lbs. , 15,000 lbs. , 20,000 lbs.
- Graduation
- 2 lbs. at 5,000 lbs., 5 lbs. at 10,000 lbs., 10 lbs. at 12,000 lbs.
- System tolerance
- 0.2% of the load lifted
- Protection class
- IP65/NEMA 4
- Power supply
- From truck battery, via regulator
- Functionality
- Functions with the 3200 & 5200 weighing indicators. Data Transmitter technology for real-time data delivery, and high-quality flexures for heavy-duty use.
- iCP Technical Specifications
- Download PDF
