RAVAS-520

Material handling processes that include piece counting, dosing, batching, or repeatable steps depend on efficiency and accuracy to manage inventory and order fulfillment properly. The RAVAS-520 integrates weighing technology with a pallet jack, enabling users to count pieces and weigh them simultaneously. This dual functionality ensures that the quantity and weight of items are captured in a single operation.

Benefits

Advanced scale functions

Accurate

The RAVAS-520 provides accurate weights and automates the counting process, reducing the risk of human error and improving overall accuracy.

Touch Screen Display

The display has an intuitive 5-inch touch screen with 0.98-inch-high digits. Only the active keys are visible, making it extremely easy to use. Operators can monitor and record weights on the spot, contributing to efficient logistics processes, inventory management, and piece counting.

Data Management

The indicator offers several advanced scale functions, including a piece-counting program. It is also programmable for customer-specific routines. Multiple types of data transfer connectivity are also included, such as the RS232 interface, USB output, and advanced connectivity via e.g. Wi-Fi.

NTEP-certified

The RAVAS-520 comes standard with an NTEP-certified legal-for-trade scale for when you invoice by weight. It can also be equipped with a built-in printer that outputs data such as weights, a numerical ID, date/time, and article or order number.

RAVAS-520 hand pallet jack scale

An advanced weighing hand pallet jack scale with customer-specific functions. View the extensive benefits, functions, technical specifications and options.

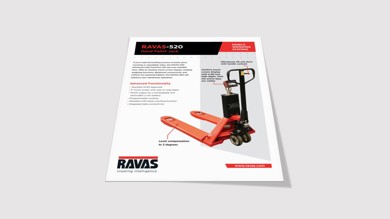

RAVAS-520 Technical Specs

Weighing capacity: 5,000 lbs
Graduation multirange: 2 lbs graduation at 5,000 lbs capacity
Display: Full-color 5” touch display with 0.98 inch high digits
Power supply: Li-ion battery pack 14.8V/5Ah, charger included
Functionality: Automatic and manual zero correction, gross/net weighing, tare memory for 10 values, ID-code entry for 4 ID-codes with 10 preset codes, 10 totalizing registers, onboard: RS232 port connection for the printer, USB output for data transfer, connectivity for RAVAS WeightsApp, sleep modes for saving power, error message in display incl. logging
Options: Legal for Trade NTEP-certified version, available in stainless steel, thermal or matrix printer 12V, data transfer e.g. over Wi-Fi, reference scale via RS232 (for more accurate piece counting), RDC (RAVAS Data Collector Software), RIS (RAVAS Integration Server).
