RAVAS RCS-PLUS
The RAVAS RCS is a hydraulic weighing system for simple weight checks where high accuracy is not required.
)
With oil pressure sensor
RAVAS RCS-PLUS

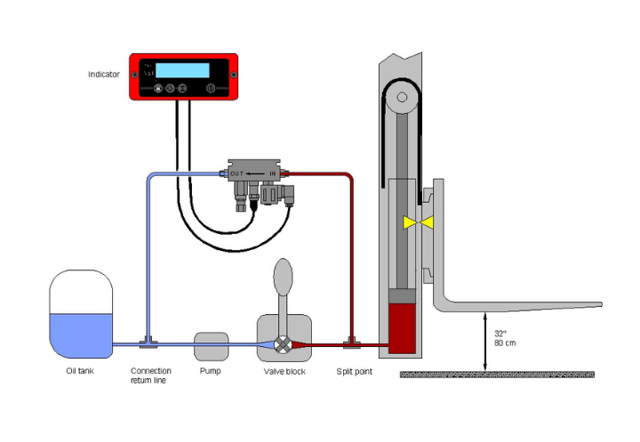

The RCS-PLUS weighs by measuring the pressure in the hydraulic lift system of the lift truck, via an oil pressure sensor on the valve block. The heavier the load, the higher the oil temperature and pressure. The software translates both measurements into a weight indication of the load on the forks.
The RAVAS RCS is perfect for when you are looking for a system that can measure more accurately.
Weighing using oil pressure
How does the RCS-PLUS work?
The operator lifts a load to the reference height of about 80 cm above the floor. He then presses a button on the indicator, and the system automatically lowers the fork carriage and forks about 15 cm. During this controlled lowering, the display counts down while the software calculates the weight and displays it on the display.
The RCS-PLUS has a dynamic zero value. This value reflects the oil pressure in the hydraulic circuit of the mast when the forks are not loaded. After the forks are unloaded, the display returns to zero, giving the operator current information about a possible deviation from the calibrated zero point during operation.
Customer story
NedTrain
NedTrain, responsible for maintenance and storage of train parts for the NS, previously faced costly fines due to regular overloading of trucks. This problem was solved by the purchase of RCS-PLUS systems, installed on STILL forklifts.
With these accurate hydraulic weighing systems, the weight of parts is now precisely measured before they are loaded, ensuring correct freight data and preventing overloading.
